Rota meter for Effluent water Treatment Plant

Product Description

Category: Online Rotameter

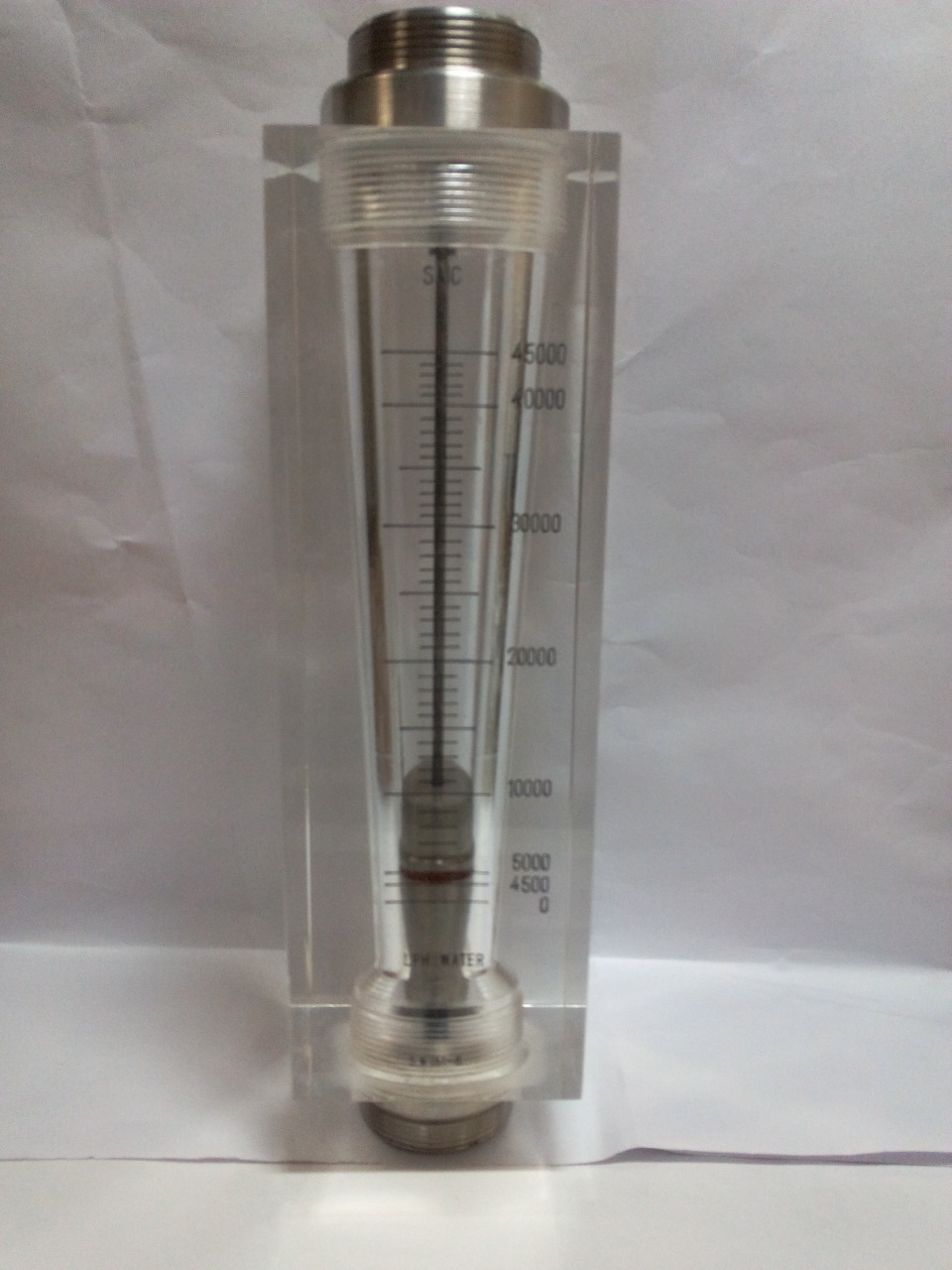

Rota meter for Effluent water Treatment Plant.

We are engaged in providing the best, measurement products includiatng Rota meter for Effluent water Treatment Plant. it comes with Stainless Steel Screwed connection as a Top-bottom connection.. We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.

Defination : Rota meter for Effluent water Treatment Plant.

Available Measuring Flow Range : from 10000 LPH to 45000 LPH

Rota meter for Effluent water Treatment Plant. in varous Flow Range from 0-10000 LPh of 0-45000 LPH or more with Stainless Steel Screwed connection in a top-Bottom screwed Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication,in the Acrylic Body Rotameter.

Manufacturing Process :

Rota meter for Effluent water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom Stainless Steel Screwed conection.

End Connection :

Generally, End-Connection , some times called as a Top-Bottom connection or Inlet & outlet connection , of the Rota meter for Effluent water Treatment Plant , fitted with as a Screwed in a stainless steel grade of 304 or 316.

How it Works :

Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Rota meter for Effluent water Treatment Plant

Measuring Flow range : from 0-10000 LPH to 0-45000 LPH

Uses :Rota meter for Effluent water Treatment Plant. generally used for, measuring the continues flow range of Water.

Specifications :

Type	Rota meter for Effluent water Treatment Plant.
Metering Tube	Acrylic Body
Line Size	From 1" INCH to 2.5" INCH BSPM Screw Connection
Scale	Engraved on Acrylic Body in suitable colour
Gland Packing	PTFE
Accuracy	( + / - 4% to 5% ) On Full Scale Display
Float	SS 304 / SS 316 / Teflon
Inlet/outlet	Bottom to Top Through Screw Connection
End Connection	Threaded of SS.304 / 316, Screwed connection Size, in BSP or NPT, Male or Female.
Service	Effluent Water
Operating Pressure	Normal / As per requirement
Operating Temp.	up to 45 Deg.C
Float Material	SS.304 / SS.316 / Teflon
All wetted Parts	SS.304 / SS.316
Rangeability	10 : 1
Line size	From 1" INCH to 2.5" INCH BSPM Screw Connection
Float MOC	SS 304 / SS 316 / TEFLON
Measuring Units	LPM / LPH / M3-HR
Screwed MOC	SS 304 / SS 316
O-Rings	Neoprene,PTFE,Silicon
