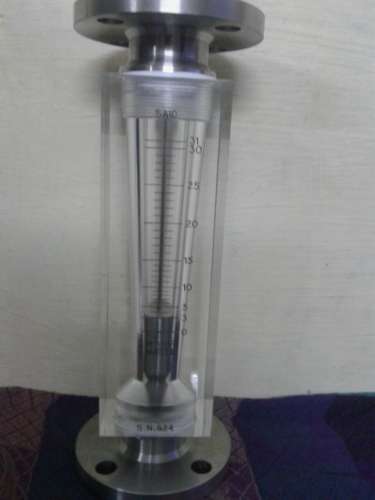

Acrylic Body Rotameter in Flange Connection for 0-31000 LPH
We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-31000 LPH .
We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.
Defination : Acrylic Body Rotameter in Flange Connection for 0-31000 LPH
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH which is manufacture in Acrylic Body is a relatively simple reliable instrument, for measuring the continuous flow rate indication, in the Acrylic Body Rotameter.
Manufacturing Process :
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet- Outlet connection , of the Acrylic Body Rotameter, fitted with as a suitable line size Flange connection , in a Stainless Steel grade of 304 or 316, MS or PP material, as required by the end user or buyer.
How it Works :
Your line fluid raises the float, in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Body Rotameter, with flange connection
Uses :
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH are generally used for, measuring the continues Flow Range of media as a Water.
Specification of Rotameter :
|
Type |
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH |
|
Metering Tube |
Acrylic Body |
|
Line Size |
2 " inch Flange Connection in ASA 150 class, SORF, Raised Faced |
|
Scale |
Engraved on Acrylic Body with suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
( / - 4% to 5%) On Full Scale Display |
|
Float |
SS 304 / SS 316 |
|
Inlet/outlet |
Bottom to Top |
|
End Connection |
Suitable Flange connection in a grade of SS.304 or 316 / MS / PP, in ASA 150 Class , SORF |
|
Service |
Water Or Specify by the Buyer |
|
Operating Pressure |
Normal / As per requirement |
|
Operating Temp. |
Upto 45 Deg.C |
|
Float Material |
SS.304 / SS.316 / Teflon |
|
All wetted Parts |
SS.304 / SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
2 " Inch Flange Connection SS 304 / SS 316 grade Flange |
|
Float Material MOC |
SS 304 / SS 316 / TEFLON |
|
Measuring Units |
LPH / m3/Hr. |
|
Flange MOC |
SS 304 / SS 316 / MS / PP |
|
O-Rings |
Neoprene,PTFE,Silicon |
Acrylic Body Rotameter in Flange Connection for 0-10 LPM for Water
We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-10 LPM .for Water
We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.
Defination : Acrylic Body Rotameter in Flange Connection for 0- 10 LPM for Water
Acrylic Body Rotameter in Flange Connection for 0-10 LPM for Water which is manufacture in Acrylic Body is a relatively simple & reliable instrument, for measuring the continuous flow rate indication, in the Acrylic Body Rotameter.
Manufacturing Process :
Acrylic Body Rotameter in Flange Connection for 0-10 LPM for Water, which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet- Outlet connection , of the Acrylic Body Rotameter, fitted with as a suitable line size Flange connection , in a Stainless Steel grade of 304 or 316, MS or PP material, as required by the end user or buyer.
How it Works :
Your line fluid raises the float, in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Body Rotameter, with flange connection
Uses :
Acrylic Body Rotameter in Flange Connection for 0-10 LPM are generally used for, measuring the continues Flow Range of media as a Water.
Specification of Rotameter :
|
Type |
Acrylic Body Rotameter in Flange Connection for 0- 10 LPM for Water |
|
Metering Tube |
Acrylic Body |
|
Line Size |
½”" inch Flange Connection in ASA 150 class, SORF, Raised Faced |
|
Scale |
Engraved on Acrylic Body with suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 2% to 3% ) On Full Scale Display |
|
Float |
SS 304 / SS 316 |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
½” Flange connection in a grade of SS.304 or 316 / MS / PP, in ASA 150 Class , SORF |
|
Service |
Water |
|
Operating Pressure |
Normal / As per requirement |
|
Operating Temp. |
Upto 45 Deg.C |
|
Float Material |
SS.304 / SS.316 / Teflon |
|
All wetted Parts |
SS.304 / SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
½” " Inch Flange Connection SS 304 / SS 316 grade Flange |
|
Float Material MOC |
SS 304 / SS 316 / TEFLON |
|
Measuring Units |
LPM |
|
Flange MOC |
SS 304 / SS 316 / MS / PP |
|
O-Rings |
Neoprene,PTFE,Silicon |
Acrylic Body Rotameter in Flange Connection for 0-10 LPM .For Water
We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-10 LPM .
We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.
Defination : Acrylic Body Rotameter in Flange Connection for 0- 10 LPM
Acrylic Body Rotameter in Flange Connection for 0-10 LPM which is manufacture in Acrylic Body is a relatively simple & reliable instrument, for measuring the continuous flow rate indication, in the Acrylic Body Rotameter.
Manufacturing Process :
Acrylic Body Rotameter in Flange Connection for 0-10 LPM , which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet- Outlet connection , of the Acrylic Body Rotameter, fitted with as a suitable line size Flange connection , in a Stainless Steel grade of 304 or 316, MS or PP material, as required by the end user or buyer.
How it Works :
Your line fluid raises the float, in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Body Rotameter, with flange connection
Uses :
Acrylic Body Rotameter in Flange Connection for 0-10 LPM are generally used for, measuring the continues Flow Range of media as a Water.
Specification of Rotameter :
|
Type |
Acrylic Body Rotameter in Flange Connection for 0- 10 LPM |
|
Metering Tube |
Acrylic Body |
|
Line Size |
½”" inch Flange Connection in ASA 150 class, SORF, Raised Faced |
|
Scale |
Engraved on Acrylic Body with suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 2% to 3% ) On Full Scale Display |
|
Float |
SS 304 / SS 316 |
|
Inlet/outlet |
Bottom to Top |
|
End Connection |
½” Flange connection in a grade of SS.304 or 316 / MS / PP, in ASA 150 Class , SORF |
|
Service |
Water |
|
Operating Pressure |
Normal / As per requirement |
|
Operating Temp. |
Upto 45 Deg.C |
|
Float Material |
SS.304 / SS.316 / Teflon |
|
All wetted Parts |
SS.304 / SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
½” " Inch Flange Connection SS 304 / SS 316 grade Flange |
|
Float Material MOC |
SS 304 / SS 316 / TEFLON |
|
Measuring Units |
LPM |
|
Flange MOC |
SS 304 / SS 316 / MS / PP |
|
O-Rings |
Neoprene,PTFE,Silicon |
Acrylic Body Rotameter in Flange Connection for 0-15000 LPH .
We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-15000 LPH .
We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect in design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.
Defination : Acrylic Body Rotameter in Flange Connection for 0-15000 LPH
Acrylic Body Rotameter in Flange Connection for 0-15000 LPH which is manufacture in Acrylic Body is a relatively simple & reliable instrument, for measuring the continuous flow rate indication, in the Acrylic Body Rotameter.
Manufacturing Process :
Acrylic Body Rotameter in Flange Connection for 0-15000 LPH, which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet- Outlet connection , of the Acrylic Body Rotameter, fitted with as a suitable line size Flange connection , in a Stainless Steel grade of 304 or 316, MS or PP material, as required by the end user or buyer.
How it Works :
Your line fluid raises the float, in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Body Rotameter, with flange connection
Uses :
Acrylic Body Rotameter in Flange Connection for 0-15000 LPH are generally used for, measuring the continues Flow Range of media as a Water.
Specification of Rotameter :
|
Type |
Acrylic Body Rotameter in Flange Connection for 0-15000 LPH |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1 ½” " inch Flange Connection in ASA 150 class, SORF, Raised Faced |
|
Scale |
Engraved on Acrylic Body with suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
( / - 4% to 4% ) On Full Scale Display |
|
Float |
SS 304 / SS 316 |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Suitable Flange connection in a grade of SS.304 or 316 / MS / PP, in ASA 150 Class , SORF |
|
Service |
Water |
|
Operating Pressure |
Normal / As per requirement |
|
Operating Temp. |
Upto 45 Deg.C |
|
Float Material |
SS.304 / SS.316 / Teflon |
|
All wetted Parts |
SS.304 / SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
1 ½” " Inch Flange Connection SS 304 / SS 316 grade Flange |
|
Float Material MOC |
SS 304 / SS 316 / TEFLON |
|
Measuring Units |
LPH |
|
Flange MOC |
SS 304 / SS 316 / MS / PP |
|
O-Rings |
Neoprene,PTFE,Silicon |
Acrylic Body Rotameter in Flange Connection for 0-20000 LPH .
We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-20000 LPH .
We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.
Defination : Acrylic Body Rotameter in Flange Connection for 0-20000 LPH
Acrylic Body Rotameter in Flange Connection for 0-20000 LPH which is manufacture in Acrylic Body is a relatively simple & reliable instrument, for measuring the continuous flow rate indication, in the Acrylic Body Rotameter.
Manufacturing Process :
Acrylic Body Rotameter in Flange Connection for 0-20000 LPH, which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet- Outlet connection , of the Acrylic Body Rotameter, fitted with as a suitable line size Flange connection , in a Stainless Steel grade of 304 or 316, MS or PP material, as required by the end user or buyer.
How it Works :
Your line fluid raises the float, in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Body Rotameter, with flange connection
Uses :
Acrylic Body Rotameter in Flange Connection for 0-20000 LPH are generally used for, measuring the continues Flow Range of media as a Water.
Specification of Rotameter :
|
Type |
Acrylic Body Rotameter in Flange Connection for 0-20000 LPH |
|
Metering Tube |
Acrylic Body |
|
Line Size |
2 " inch Flange Connection in ASA 150 class, SORF, Raised Faced |
|
Scale |
Engraved on Acrylic Body with suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
( / - 4% to 5% ) On Full Scale Display |
|
Float |
SS 304 / SS 316 |
|
Inlet/outlet |
Bottom to Top Through Flange Connection |
|
End Connection |
2 " Flange connection in a grade of SS.304 or 316 / MS / PP, in ASA 150 Class , SORF |
|
Service |
Water |
|
Operating Pressure |
Normal / As per requirement |
|
Operating Temp. |
Upto 45 Deg.C |
|
Float Material |
SS.304 / SS.316 / Teflon |
|
All wetted Parts |
SS.304 / SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
2 " Inch Flange Connection SS 304 / SS 316 grade Flange |
|
Float Material MOC |
SS 304 / SS 316 / TEFLON |
|
Measuring Units |
LPH |
|
Flange MOC |
SS 304 / SS 316 / MS / PP |
|
O-Rings |
Neoprene,PTFE,Silicon |
|
Acrylic Body Rotameter in Flange Connection for 0-300 LPH for Water. We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-300 LPH for Water. We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range. Defination : Acrylic Body Rotameter in Flange Connection for 0-300 LPH Manufacturing Process : Acrylic Body Rotameter in Flange Connection for 0-300 LPH, which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
Uses :
Acrylic Body Rotameter in Flange Connection for 0-300 LPH are generally used for, measuring the continues Flow Range of media as a Water. Specification of Rotameter :
|
|||||||||||||||||||||||||||||||||||||||||
View Product Details
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH .
We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-31000 LPH .
We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.
Defination : Acrylic Body Rotameter in Flange Connection for 0-31000 LPH
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH which is manufacture in Acrylic Body is a relatively simple reliable instrument, for measuring the continuous flow rate indication, in the Acrylic Body Rotameter.
Manufacturing Process :
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet- Outlet connection , of the Acrylic Body Rotameter, fitted with as a suitable line size Flange connection , in a Stainless Steel grade of 304 or 316, MS or PP material, as required by the end user or buyer.
How it Works :
Your line fluid raises the float, in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Body Rotameter, with flange connection
Uses :
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH are generally used for, measuring the continues Flow Range of media as a Water.
Specification of Rotameter :
|
Type |
Acrylic Body Rotameter in Flange Connection for 0-31000 LPH |
|
Metering Tube |
Acrylic Body |
|
Line Size |
2 "Inch Flange Connection in ASA 150 class, SORF, Raised Faced |
|
Scale |
Engraved on Acrylic Body with suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
( / - 4% to 5%) On Full Scale Display |
|
Float |
SS 304 / SS 316 |
|
Inlet/outlet |
Bottom to Top Through Flange Connection |
|
End Connection |
2 "Inch Flange Connection in ASA 150 class, SORF, Raised Faced |
|
Service |
Water |
|
Operating Pressure |
Normal / As per requirement |
|
Operating Temp. |
Upto 45 Deg.C |
|
Float Material |
SS.304 / SS.316 / Teflon |
|
All wetted Parts |
SS.304 / SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
2 " Inch Flange Connection SS 304 / SS 316 grade Flange |
|
Float Material MOC |
SS 304 / SS 316 / TEFLON |
|
Measuring Units |
LPH |
|
Flange MOC |
SS 304 / SS 316 / MS / PP |
|
O-Rings |
Neoprene,PTFE,Silicon |
|
Acrylic Body Rotameter in Flange Connection for 0-5000 LPH . We are engaged in providing the best, measurement products calling name is Acrylic Body Rotameter in Flange Connection for 0-5000 LPH . We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range. Definition : Acrylic Body Rotameter in Flange Connection for 0-5000 LPH Manufacturing Process : Acrylic Body Rotameter in Flange Connection for 0-5000 LPH, which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable line size of Flange Connection, as required, by the end user or buyer.
Uses : Acrylic Body Rotameter in Flange Connection for 0-5000 LPH are generally used for, measuring the continues Flow Range of media as a Water. Specification of Rotameter :
|
|||||||||||||||||||||||||||||||||||||||||
Acrylic Body Rotameter with Flange Connection
We are engaged in providing best, measurement products calling name is Acrylic Body Rotameter with Flange Connection .We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect tin design, highly reliable, handy, sustainable, advanced, easy to use and are available in the market at the minimum price range.
Defination : Acrylic Body Rotameter with Flange Connection
Available Flow Range : From 500 LPH to 50000 LPH ( For AIR & Water )
Acrylic Body Rotameter with Flange Connection, twhich is manufacture in Acrylic Body is a relatively simple & reliable instrument, for measuring the continuous flow rate indication, in the Acrylic Body Rotameter.
Manufacturing Process :
Acrylic Body Rotameter with Flange connection, which is manufacture in Acrylic Body is a tapered tube drilled directly in Acrylic Body, with engraving the flow rate. In Acrylic Body Rotameter, flow range is calibrated, engraved and colored with black or other colors in body itself, for long lasting durability, with its Top-Bottom, Suitable Flange Connection, as required, by the end user or buyer.
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet- Outlet connection , of the Acrylic Body Rotameter, fitted with as a suitable Flange connection , in a Stainless Steel grade of 304 or 316, MS or PP material, as required by the end user or buyer.
How it Works :
Your line fluid raises the float, in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Body Rotameter, with flange connection
Uses :
Acrylic Body Rotameter with Flange connection, are generally used for, measuring the Flow Range of, AIR & WATER
Specification of Rotameter :
|
Type |
Acrylic Body Rotameter with Flange Connection |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1” to 4”in Suitable Flange Connection in ASA 150 class, Raised Faced |
|
Scale |
Engraved on Acrylic Body with suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5% ) On Full Scale Display |
|
Float |
SS 304 / SS 316 / Teflon |
|
Inlet/outlet |
Bottom to Top |
|
End Connection |
Suitable Flange connection in a grade of SS.304 or 316 / MS / PP, in ASA 150 Class , Raised Faced |
|
Service |
Specify or As per Buyer Choice |
|
Operating Pressure |
Normal / As per requirement |
|
Operating Temp. |
up to 45 to 50 Deg. |
|
Float Material |
SS.304 / SS.316 / Teflon |
|
All wetted Parts |
SS.304 / SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
½” to 4” |
|
Float Material MOC |
SS 304 / SS 316 / TEFLON |
|
Measuring Units |
LPH / LPM / M3HR |
|
Flange MOC |
SS 304 / SS 316 / MS / PP |
|
O-Rings |
Neoprene,PTFE,Silicon |
View Product Details
Flange Type Rota meter for Effluent Water Treatment Plant
We are engaged in providing the best, measurement products including Flange Type Rota meter for Effluent Water Treatment Plant MFG. in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Available Measuring Flow Range : From 10000 LPH to 45000 LPH
Flow Media : Effluent Water ,
Flow Measuring Body : Acrylic Body,
Flange Type Rota Meter for Effluent Water Treatment Plant in various Flow Range from 0-10000 LPH of 0-45000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, Mfg. in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota Meter for Effluent Water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate. Flow range is calibrated, engraved and coloured with black or other colours in Acrylic Body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , sometimes called as a Top-Bottom connection or Inlet & outlet connection , of the Flange type Rota meter for Effluent water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works : Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota Meter For Effluent Water Treatment Plant
Uses : Flange Type Rota meter for Effluent Water Treatment Plant is generally used for, measuring the continues flow range of Effluent Water.
Specifications :
|
Type |
Flange type Rota meter for Effluent Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange Connection |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5% ) On Full Scale Display |
|
Float |
Teflon Coating SS 316 Grade Material |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
for Effluent Water |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
Teflon Coating SS 316 grade Rod |
|
All wetted Parts |
SS.304 or SS.316 with Teflon coaing |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORF, raised faced, |
|
Float MOC |
Teflon Coating SS 316 grade rod |
|
Measuring Units |
LPH |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene, PTFE, Silicon |
View Product Details
Flange Type Rota meter for ETP Water Treatment Plant
We are engaged in providing the best, measurement products including Flange Type Rota meter for ETP Water Treatment Plant Mfg in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Defination : Flange Type Rota Meter for ETP Water Treatment Plant
Available Measuring Flow Range : From 10000 LPH to 50000 LPH ( Litter Per Hour )
Media : ETP Water
Flow Measuring Body : Acrylic Body,
Flange type Rota Meter for ETP Water Treatment Plant in various Flow Range from 0-10000 LPH of 0-50000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, Mfg. in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota Meter for ETP Water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate. Flow range is calibrated, engraved and coloured with black or other colours in Acrylic Body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , sometimes called as a Top-Bottom connection or Inlet & outlet connection , of the Flange Type Rota Meter for ETP Water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works :
Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota Meter for ETP Water Treatment Plant
Uses :
Flange Type Rota meter for ETP Water Treatment Plant is generally used for, measuring the continues flow range of Water in ETP Water Treatment Plant.
Specifications :
|
Type |
Flange type Rota Meter for ETP Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5% ) On Full Scale Display |
|
Float |
Teflon Coating Ss 304 / SS 316 Grade Material |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
ETP Water |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
Teflon Coating SS 304 / SS 316 Grade Material |
|
All wetted Parts |
SS.304 or SS.316 with Teflon coating |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORF, raised faced, |
|
Float MOC |
Teflon Coating SS 316 grade rod |
|
Measuring Units |
LPM / LPH / M3/Hr. |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene, PTFE, Silicon |
View Product Details
Flange Type Rota meter for RO Water Treatment Plant Mfg
We are engaged in providing the best, measurement products including Flange Type Rota meter for RO Water Treatment Plant Mfg in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Defination : Flange Type Rota meter for RO Water Treatment Plant
Available Measuring Flow Range : From 10000 LPH to 50000 LPH ( Litter Per Hour )
Media : RO Water
Flow Measuring Body : Acrylic Body,
Flange Type Rota meter for RO Water Treatment Plant in various Flow Range from 0-10000 LPH 0-50000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, Mfg. in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota meter for RO Water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate. Flow range is calibrated, engraved and coloured with black or other colours in Acrylic Body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , sometimes called as a Top-Bottom connection or Inlet & outlet connection , of the Flange Type Rota meter for Water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works :
Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota meter for RO Water Treatment Plant
Uses :
Flange Type Rota meter for RO Water Treatment Plant is generally used for, measuring the continues flow range of Water in RO Water Treatment Plant.
Specifications :
|
Type |
Flange Type Rota meter for RO Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5%) On Full Scale Display |
|
Float |
SS 304 / SS 316 Grade Material |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
RO Water |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
SS 304 / SS 316 Grade Material |
|
All wetted Parts |
SS.304 or SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORf, raised faced, |
|
Float MOC |
SS 304 / SS 316 Grade Material |
|
Measuring Units |
LPM / LPH / M3/Hr. |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene, PTFE, Silicon |
View Product Details
We are engaged in providing the best, measurement products including Flange Type Rota meter for Sewage Water Treatment Plant Mfg in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Defination : Flange Type Rota meter for Sewage Water Treatment Plant
Available Measuring Flow Range : From 10000 LPH to 50000 LPH ( Litter Per Hour )
Media : Sewage Water
Flow Measuring Body : Acrylic Body,
Flange Type Rota meter for Sewage Water Treatment Plant in various Flow Range from 0-10000 LPH 0-50000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, Mfg. in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota meter for Sewage Water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate. Flow range is calibrated, engraved and coloured with black or other colours in Acrylic Body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , sometimes called as a Top-Bottom connection or Inlet & outlet connection , of the Flange Type Rota meter for Water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works :
Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota meter for Sewage Water Treatment Plant
Uses :
Flange Type Rota meter for Sewage Water Treatment Plant is generally used for, measuring the continues flow range of Water in RO Water Treatment Plant.
Specifications :
|
Type |
Flange Type Rota meter for Sewage Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / -4% to 5% ) On Full Scale Display |
|
Float |
SS 304 / SS 316 Grade Material |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
Sewage Water |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
Teflon Coated SS 304 / SS 316 Grade Material |
|
All wetted Parts |
SS.304 or SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORf, raised faced, |
|
Float MOC |
Teflon Coated SS 304 / SS 316 Grade Material |
|
Measuring Units |
LPH |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene, PTFE, Silicon |
View Product Details
We are engaged in providing the best, measurement products including Flange Type Rota meter for STP Water Treatment Plant Mfg in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Defination : Flange type Rota Meter for STP Water Treatment Plant
Available Measuring Flow Range : From 10000 LPH to 50000 LPH ( Litter Per Hour )
Media : STP Water
Flow Measuring Body : Acrylic Body,
Flange type Rota Meter for STP Water Treatment Plant in various Flow Range from 0-10000 LPH of 0-50000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, Mfg. in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota Meter for STP Water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate. Flow range is calibrated, engraved and coloured with black or other colours in Acrylic Body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , sometimes called as a Top-Bottom connection or Inlet & outlet connection , of the Flange Type Rota Meter for STP Water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works :
Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota Meter for STP Water Treatment Plant
Uses :
Flange Type Rota meter for STP Water Treatment Plant is generally used for, measuring the continues flow range of Water in STP Water Treatment Plant.
Specifications :
|
Type |
Flange type Rota Meter for STP Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5% ) On Full Scale Display |
|
Float |
Teflon Coating Ss 304 / SS 316 Grade Material |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
STP Water |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
Teflon Coating SS 304 / SS 316 Grade Material |
|
All wetted Parts |
SS.304 or SS.316 with Teflon coating |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORF, raised faced, |
|
Float MOC |
Teflon Coating SS 316 grade rod |
|
Measuring Units |
LPM / LPH / M3/Hr. |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene, PTFE, Silicon |
View Product Details
We are engaged in providing the best, measurement products including Flange Type Rota meter for Waste water Treatment Plant Mfg in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Defination : Flange type Rota meter for Waste water Treatment Plant
Available Measuring Flow Range : From 10000 LPH to 45000 LPh
Media : Waste Water
Flow Measuring Body : Acrylic Body,
Flange type Rota meter for Waste water Treatment Plant in varous Flow Range from 0-10000 LPh of 0-45000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, mfg in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota meter for Waste water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate.Flow range is calibrated, engraved and colored with black or other colors in Acrylic Body body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet & outlet connection , of the Flange type Rota meter for Waste water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works :
Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota meter for Sea Water Treatment Plant
Uses :
Floange Type Rota meter for Waste Water Treatment Plant is generally used for, measuring the continues flow range of Sea Water.
Specifications :
|
Type |
Flange type Rota meter for Waste Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5% ) On Full Scale Display |
|
Float |
Teflon Coatig SS 316 grade rod |
|
Inlet/outlet |
Bottom to Top Through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
Waste water |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
Teflon Coating SS 316 grade Rod or SS 304 / SS 316 |
|
All wetted Parts |
SS.304 or SS.316 with Teflon coaing |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORf, raised faced, |
|
Float MOC |
teflon Coating SS 316 grade rod |
|
Measuring Units |
LPM / LPH / M3-HR. |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene,PTFE,Silicon |
We are engaged in providing the best, measurement products including Flange Type Rota meter for Waste water Treatment Plant Mfg in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Defination : Flange type Rota meter for Waste water Treatment Plant
Available Measuring Flow Range : From 10000 LPH to 45000 LPh
Media : Waste Water
Flow Measuring Body : Acrylic Body,
Flange type Rota meter for Waste water Treatment Plant in varous Flow Range from 0-10000 LPh of 0-45000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, mfg in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota meter for Waste water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate.Flow range is calibrated, engraved and colored with black or other colors in Acrylic Body body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet & outlet connection , of the Flange type Rota meter for Waste water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works :
Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota meter for Sea Water Treatment Plant
Uses :
Floange Type Rota meter for Waste Water Treatment Plant is generally used for, measuring the continues flow range of Sea Water.
Specifications :
|
Type |
Flange type Rota meter for Waste Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5% ) On Full Scale Display |
|
Float |
Teflon Coatig SS 316 grade rod |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
Waste water |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
Teflon Coating SS 316 grade Rod or SS 304 / SS 316 |
|
All wetted Parts |
SS.304 or SS.316 with Teflon coaing |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORf, raised faced, |
|
Float MOC |
teflon Coating SS 316 grade rod |
|
Measuring Units |
LPM / LPH / M3-HR. |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene,PTFE,Silicon |
We are engaged in providing the best, measurement products including Flange Type Rota meter for Water Treatment Plant Mfg in Acrylic Body comes with Stainless Steel flange connection, as a Top-bottom connection
Defination : Flange Type Rota meter for Water Treatment Plant
Available Measuring Flow Range : From 10000 LPH to 45000 LPH ( Liter Per Hour )
Media : Water
Flow Measuring Body : Acrylic Body,
Flange Type Rota meter for Water Treatment Plant in various Flow Range from 0-10000 LPH 0-45000 LPH with Stainless Steel Flange connection in a top-Bottom Connection, is a relatively simple & reliable instrument for measuring the continuous flow rate indication, Mfg. in the Acrylic Body itself.
Manufacturing Process :
Flange Type Rota meter for Water Treatment Plant is a tapered tube drilled directly in acrylic body, with engraving with its asking flow rate. Flow range is calibrated, engraved and coloured with black or other colours in Acrylic Body itself, for long lasting durability, with its Top-Bottom Stainless Steel Flange Connection
End Connection :
Generally, End-Connection , some times called as a Top-Bottom connection or Inlet & outlet connection , of the Flange Type Rota meter for Water Treatment Plant , fitted with stainless steel 304 or 316 grade Flanged in ASA 150 Class, SORF, raised faced or as per buyer choice.
How it Works :
Your line fluid raises the float in tapered Acrylic body tube area, increases as float moves upward, thereby showing the exact (Increasing) flow in the Flange Type Rota meter for Water Treatment Plant
Uses :
Flange Type Rota meter for Water Treatment Plant is generally used for, measuring the continues flow range of Water in Water Treatment Plant.
Specifications :
|
Type |
Flange Type Rota meter for Water Treatment Plant |
|
Metering Tube |
Acrylic Body |
|
Line Size |
1" to 4" in Stainless Steel 304 or 316 grade Flange |
|
Scale |
Engraved on Acrylic Body in suitable colour |
|
Gland Packing |
PTFE |
|
Accuracy |
(+ / - 4% to 5% ) On Full Scale Display |
|
Float |
SS 304 / SS 316 Grade Material |
|
Inlet/outlet |
Bottom to Top through Flange Connection |
|
End Connection |
Stainless Steel 304 or 316 grade Flange in ASA 150 Class , SORF, raised faced or As per buyer choice |
|
Service |
Water Treatment Plant |
|
Operating Pressure |
As per requirement |
|
Operating Temp. |
up to 45 Deg.C |
|
Float Material |
SS 304 / SS 316 Grade Material |
|
All wetted Parts |
SS.304 or SS.316 |
|
Rangeability |
10 : 1 |
|
Line size |
Stainless Steel grade 304 or 316 Flange in a ASA 150 class, SORf, raised faced, |
|
Float MOC |
SS 304 / SS 316 Grade Material |
|
Measuring Units |
LPM / LPH / M3-HR. |
|
Flanged MOC |
SS 304 / SS 316 |
|
O-Rings |
Neoprene, PTFE, Silicon |
View Product Details
