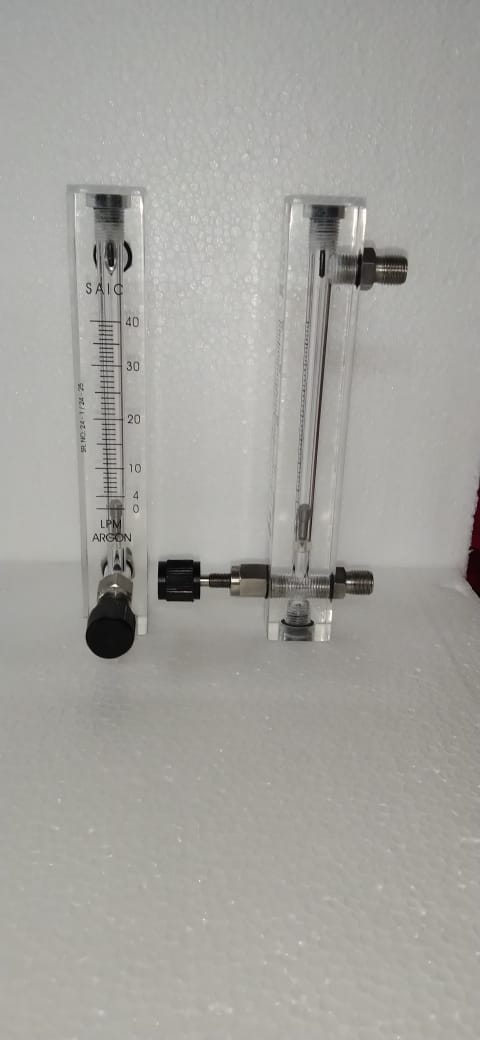

ARGON Rotameter In Flow Range 0-40 LPM
We are engaged in providing best, measurement products including a Argon Rotameter In Flow Range 0-40 LPM. We follow advanced market trends and design the most reliable products which are simple to use and are accurate in reading. They are perfect in design, highly reliable, handy, sustainable, advanced, easy to use and are available with us at the minimum price range.
Definition :
Argon Rotameter In Flow Range 0-40 LPM comes in a Rear or Back Connection with Flow Control Valve, is a relatively simple & reliable instrument for measuring the continuous flow rate indication of Air.
Manufacturing Process:
Argon Rotameter In Flow Range 0-40 LPM is a mfg in a tapered tube, drilled directly in acrylic body, with engraving the Flow rate. In Argon Rotameter In Flow Range 0-40 LPM Flow range is calibrated, engraved and coloured with black or other colors on Acrylic body itself for long lasting durability.
Flow Control valve : These flow meters for Argon Rotameter In Flow Range 0-40 LPM are provided with the Flow control valve / Needle Valve, at the entry point of the Rotameter, to control the flow of the AIR, as required.
End Connection : End-Connection sometimes called as Rear OR Back Connection, also known as an Inlet & outlet of the flow meter for Argon Rotameter In Flow Range 0-40 LPM are generally fitted with its suitable size of Screwed connection. The end connection comes as a Back or Rear connection, with its suitable line size required.
How it Works :
Your AIR fluid raises the float in tapered in a Acrylic Tube Area, increases float moves upward, thereby showing the exact (Increasing) flow in the Acrylic Tube area & it can be control by the Flow control valve or Needle valve, at the entry point of the Air Rotameter, as per your asking flow range.
Uses :
Argon Rotameter In Flow Range 0-40 LPM are generally used for the measuring the continues Flow Range of Air.
Specifications :
|
Type
|
Argon Rotameter In Flow Range 0-40 LPM
|
|
Metering Tube
|
Acrylic Tube Body
|
|
Line Size
|
½” BSPM Screwed Connection in SS 304 grade as a Rear or Back Connection
|
|
Scale
|
Engraved on Acrylic Body with Suitable Black colour
|
|
Gland Packing
|
PTFE / Teflon
|
|
Accuracy
|
( +/- 3 to 4% ) On Full Scale Display
|
|
Float
|
SS 304 / SS 316 / Teflon
|
|
Inlet/Outlet
|
Bottom to Top through Rear / Back BSPM Screwed Connection
|
|
Connection
|
½”BSPM Male Screw Connection in SS 304 Grade as a Rear or Back Connection
|
|
Service
|
Oxygen
|
|
Operating Pressure
|
Normal
|
|
Operating Temp.
|
Up to 40 to 45 Deg.C
|
|
Float Material
|
SS.304 / SS.316
|
|
All wetted Parts
|
SS.304 / SS.316
|
|
Rangeability
|
10 : 1
|
|
Line size
|
½”BSPM Male Screw Connection in SS 304 Grade as a Rear or Back Connection
|
|
Float MOC
|
SS 304 / SS 316 / TEFLON
|
|
Measuring Units
|
0 to 40 LPM
|
|
Screwed MOC
|
SS 304 / SS 316
|
|
O-Rings
|
Neoprene, PTFE, Silicon
|
|
